Parallelepiped? What is it?

A parallelepiped is a geometric figure that resembles a rectangle in three dimensions. Each of its six surfaces is a parallelogram. A parallelepiped can be used to represent a sound source or an acoustic enclosure in terms of acoustic radiation.

To comprehend the acoustic radiation emitted by a parallelepiped or any other sound source, it is necessary to consider its geometry, surface properties, vibration modes, and radiation efficacy. This information is useful for designing acoustic enclosures, optimising sound source characteristics, and predicting the sound field in different environments.

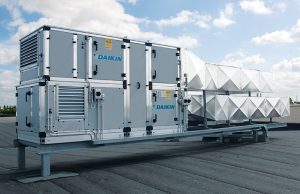

A common use of a parallelepiped calculation would be for the radiation of a large AHU or other similarly large radiating item of plant.

When contemplating acoustic radiation from a parallelepiped, the following factors must be considered:

Source Characteristics: The dimensions and configuration of the parallelepiped can affect the sound source’s radiation characteristics. A larger parallelepiped, for instance, may generate more sound energy than a smaller one, assuming that all other factors are equal. The geometry of the parallelepiped can also influence the directional characteristics of sound emission. Depending on the configuration of the enclosure, the sound waves can be concentrated in particular directions or dispersed more evenly.

Surface Properties: The parallelepiped’s surface materials can influence the acoustic radiation. The sound absorption and reflection characteristics of various materials vary. A parallelepiped with surfaces that have a high level of sound insulation will radiate less sound energy, resulting in a distinct radiation pattern than one with surfaces with a uniform construction.

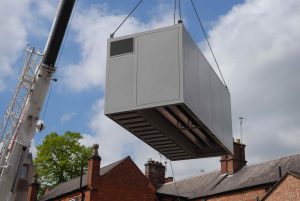

Below is an image of an acoustic enclosure that we designed in conjunction with Acoustic Hardware Ltd (https://www.acoustichardware.co.uk). Notice that some elements are air passing, and some are constructed of solid acoustic panels. The result is that the radiation characteristics of each of the parallel faces is different and therefore the expansion of the parallelepiped propagation for this sound source would not be uniform.

Vibrational Modes: Depending on its geometry and boundary conditions, a parallelepiped may sustain a variety of vibrational modes. These modes can affect the radiation pattern and frequency response of the source’s sound emission. Resonance effects can result from vibrational modes, where specific frequencies are amplified or suppressed in the radiated sound.

Radiation Efficiency: A parallelepiped’s radiation efficiency refers to how efficiently it converts mechanical vibration or electrical energy into sound waves. This can be affected by its structural properties, damping characteristics, and vibration mechanism. A high radiation efficiency indicates that a greater proportion of the input energy is converted into sound, whereas a lesser efficiency indicates a greater amount of energy loss or dissipation.

Notably, the acoustic radiation behaviour of a parallelepiped can be complex and may necessitate computational methods or analytical techniques for precise prediction and analysis. Boundary conditions, resonance effects, and the presence of internal sources or obstructions can have additional effects on the acoustic radiation characteristics.

If you would like to learn more, please contact a member of the CSG Acoustics team and we will be happy to assist you.
